Unicorn Metal Industries is a premier manufacturer and supplier of high-performance Butt Weld Fittings. Designed for critical piping systems, these fittings provide a strong, leak-proof connection with a smooth internal surface, minimizing pressure drop and turbulence in the flow.
We specialize in Stainless Steel Butt Weld Fittings compliant with ASME/ANSI B16.9 and MSS-SP-43. Our comprehensive inventory includes grades like 304/L, 316/L, 321, 347, and 310S. These are essential for hygienic and corrosive environments in pharmaceutical, food processing, and chemical industries.
For high-pressure and structural applications, we supply robust Carbon Steel Fittings (ASTM A234 WPB, A420 WPL6). These are the industry standard for oil and gas pipelines, power plants, and shipbuilding.
Our portfolio extends to Alloy Steel (WP11, WP22, WP91) for high-temperature service and Duplex/Super Duplex for marine environments. We stock the full range of shapes including Elbows (Long/Short Radius), Tees, Reducers (Concentric/Eccentric), Caps, and Stub Ends to suit every piping layout.
Specification Table of Buttweld Fittings
| Specification | Details |
|---|---|
| Product | Butt Weld Pipe Fittings (Seamless & Welded) |
| Types | Elbow (90°/45°/180°), Tee (Equal/Reducing), Reducer (Concentric/Eccentric), Cap, Stub End (Long/Short), Cross |
| Standards (Dimensions) | ASME/ANSI B16.9 (Factory-Made Wrought Buttwelding Fittings), ASME B16.28 (Short Radius Elbows), MSS-SP-43 (Stainless Steel) |
| Material Grades (Stainless) | ASTM A403 WP 304/L, 316/L, 317L, 321, 347, 310S, 904L |
| Material Grades (Carbon) | ASTM A234 WPB / WPC, ASTM A420 WPL6 (Low Temp), ASTM A860 WPHY 42/52/60/65/70 (High Yield) |
| Material Grades (Alloy) | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
| Material Grades (Duplex) | ASTM A815 UNS S31803 (Duplex), S32750 / S32760 (Super Duplex) |
| Nickel Alloys | Inconel 600/625, Monel 400, Hastelloy C276, Incoloy 800/825, Titanium |
| Size Range | 1/2" NB to 48" NB (Seamless up to 24", Welded for larger sizes) |
| Wall Thickness (Schedule) | SCH 10, SCH 20, SCH 40 (STD), SCH 80 (XS), SCH 160, XXS |
| Radius Types | Long Radius (R=1.5D), Short Radius (R=1.0D), 3D, 5D, 10D Bends |
| End Connections | Butt Weld (Beveled Ends) |
| Applications | Oil & Gas Pipelines, Chemical Plants, Power Generation, Water Treatment, HVAC, Shipbuilding |
Butt Weld Elbows

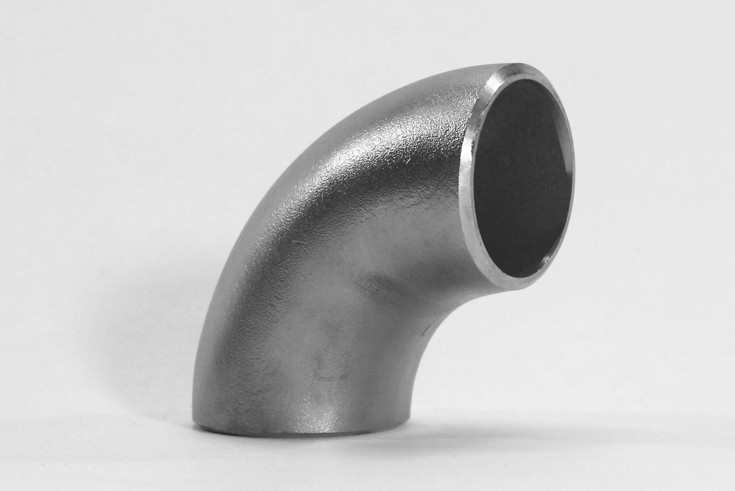

Butt Weld Elbows are used to change the direction of flow. We supply Long Radius (LR) (1.5x Diameter) for lower pressure drop and Short Radius (SR) (1.0x Diameter) for tight spaces. Available in 45°, 90°, and 180° (Return Bends).
Butt Weld Tees

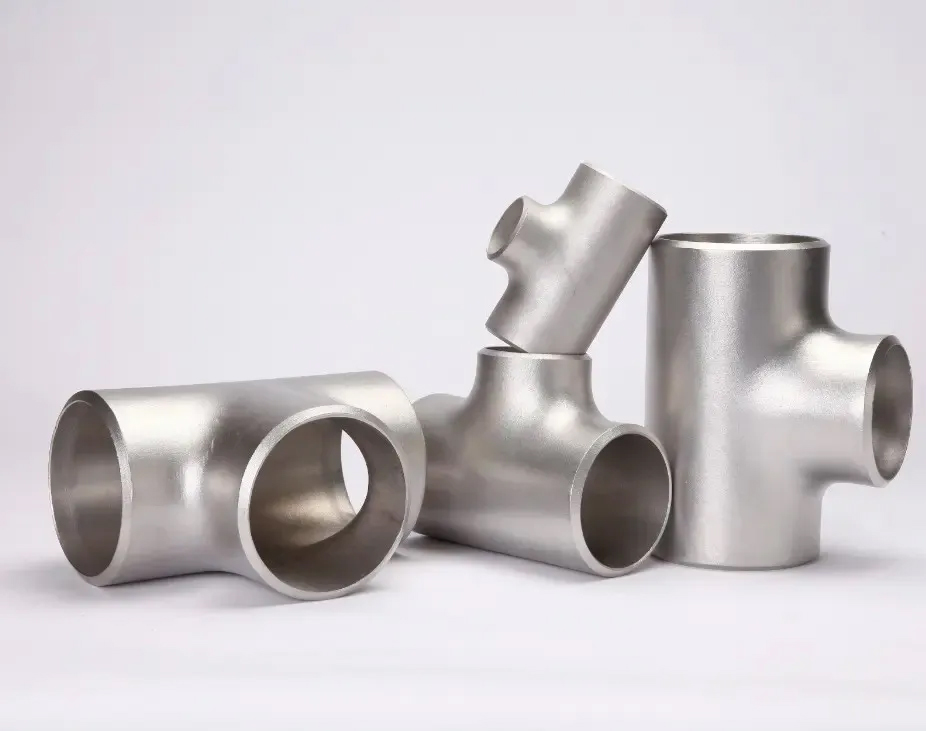

Butt Weld Tees are used to combine or split fluid flow. Equal Tees have the same diameter at all three outlets, while Reducing Tees feature a smaller diameter on the branch outlet to reduce flow volume or connect smaller lines.
Butt Weld Reducers

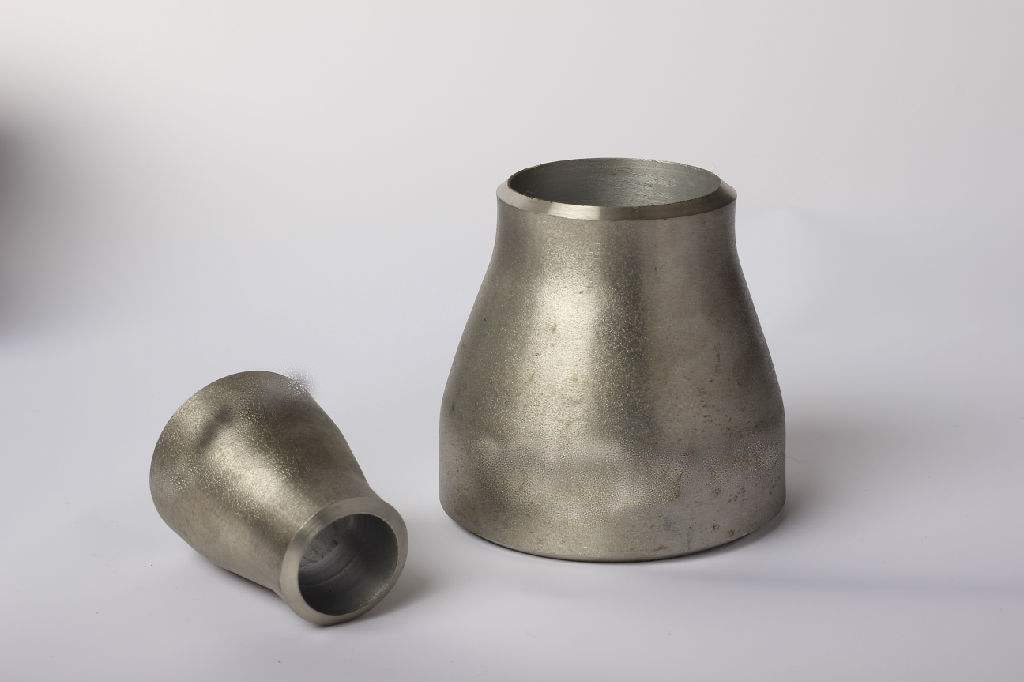

Reducers connect pipes of different diameters. Concentric Reducers maintain a common centerline and are used in vertical lines. Eccentric Reducers maintain a flat bottom/top and are critical in horizontal pump suction lines to prevent air pockets.
Stub Ends (Lap Joint)

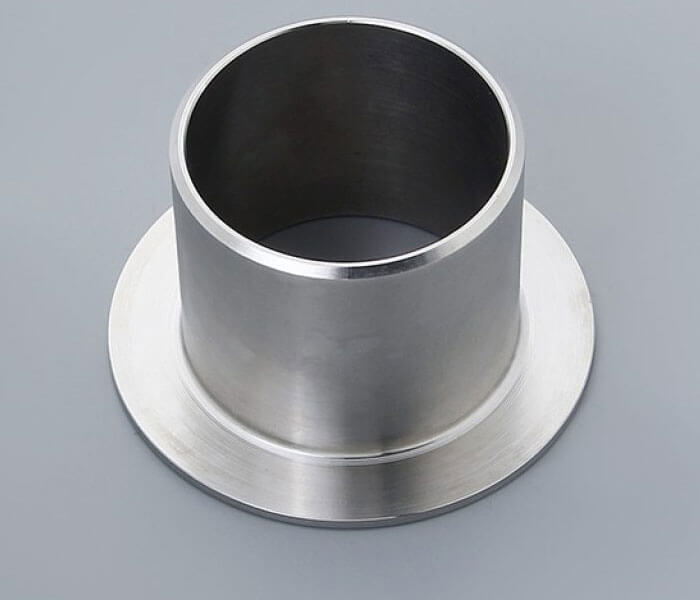

Stub Ends are short lengths of pipe with a flared end, used in conjunction with Lap Joint Flanges. The Stub End is welded to the pipe, while the flange remains loose, allowing for easy bolt alignment and cost savings by using carbon steel flanges on stainless lines.
Pipe Caps

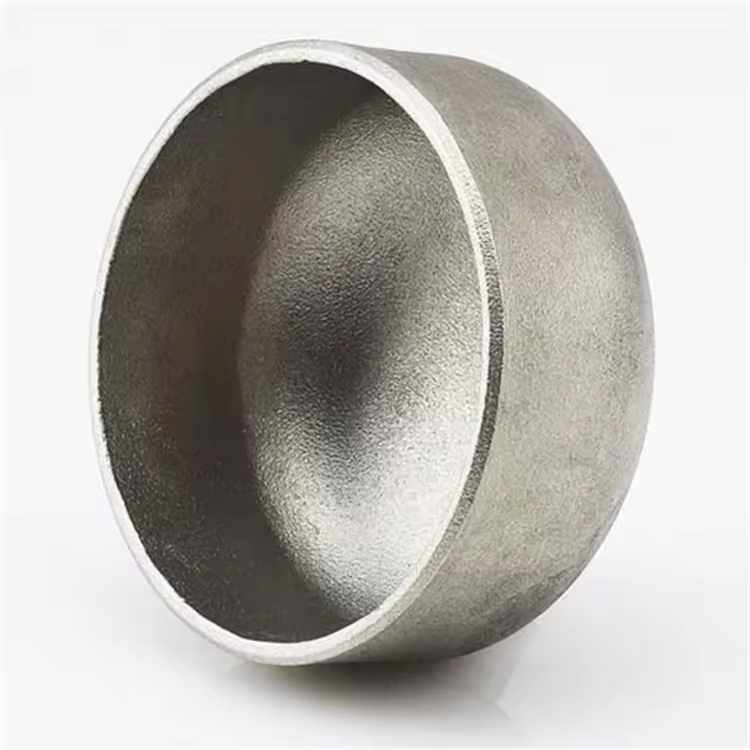

Butt Weld Caps are welded to the end of a pipe to seal it permanently. They are ellipsoidal in shape to withstand internal pressure and distribute stress evenly, ensuring a safe and secure termination of the pipeline.

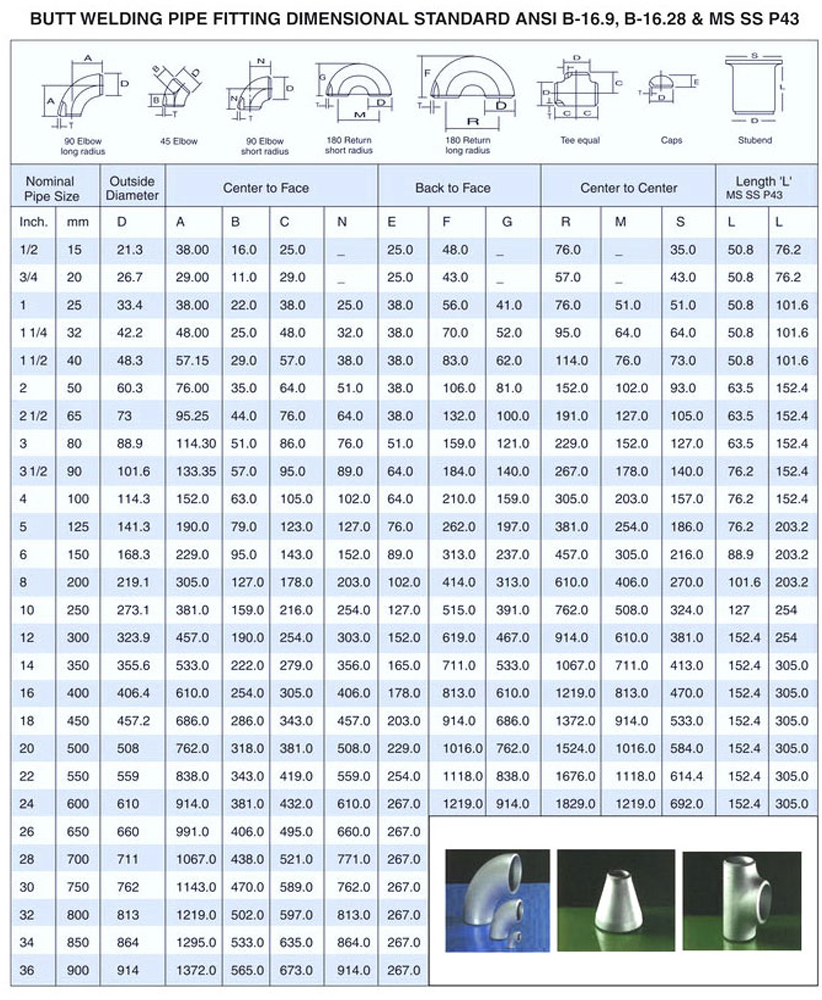

Standard Dimensions (ASME B16.9)
"Seamless flow, solid strength. Unicorn Metal Industries supplies precision-engineered butt weld fittings that ensure minimal turbulence and maximum structural integrity for the world's most extensive piping networks."
