Unicorn Metal Industries is a leading manufacturer and stockist of high-precision Industrial Flanges. Designed to withstand high pressure, extreme temperatures, and corrosive environments, our flanges ensure leak-proof connections in pipelines, valves, and pumps.
We specialize in Stainless Steel Flanges compliant with ASME/ANSI B16.5 and B16.47. Our inventory includes grades like 304/L, 316/L, 317L, 321, and 310S, available in all pressure classes from 150# to 2500#. These are essential for hygienic applications in pharma, food processing, and chemical plants.
For oil, gas, and structural applications, we supply Carbon Steel Flanges (ASTM A105, A350 LF2, A694). Known for their toughness and durability, these flanges are the standard for high-pressure transmission lines and refineries.
Our portfolio also includes premium Nickel Alloy Flanges (Inconel, Monel, Hastelloy) and Duplex/Super Duplex Flanges for offshore and subsea applications requiring superior resistance to chloride pitting and stress corrosion cracking.
We supply a complete range of types including Weld Neck, Slip-On, Blind, Socket Weld, Threaded, and Lap Joint, available in various face types like Raised Face (RF), Flat Face (FF), and Ring Type Joint (RTJ).
Specification Table of Flanges
| Specification | Details |
|---|---|
| Product | Forged & Plate Flanges |
| Types | Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint, Long Weld Neck, Spectacle Blind, Orifice |
| Standards (ANSI/ASME) | ASME B16.5 (1/2" - 24"), ASME B16.47 Series A & B (26" - 60"), MSS SP44 |
| Standards (DIN / EN) | DIN 2527, 2573, 2576, 2633, 2634, 2635, ND-6, ND-10, ND-16, ND-25, ND-40, EN1092-1 |
| Pressure Class (ASME) | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Material Grades (Stainless) | ASTM A182 F304/L, F316/L, F317L, F321, F347, F310, F904L |
| Material Grades (Carbon) | ASTM A105 / A105N, ASTM A350 LF2 / LF3 (Low Temp), ASTM A694 F42 to F70 (High Yield) |
| Material Grades (Alloy) | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Material Grades (Duplex) | ASTM A182 F51 (Duplex), F53 / F55 (Super Duplex) |
| Nickel Alloys | Inconel 600/625, Monel 400/K500, Hastelloy C276, Incoloy 800/825, Titanium |
| Face Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Tongue & Groove (T&G), Male & Female (M&F) |
| Size Range | 1/2" NB to 60" NB |
| Applications | Pipeline Connection, Valves, Pumps, Pressure Vessels, Heat Exchangers, Marine Piping |

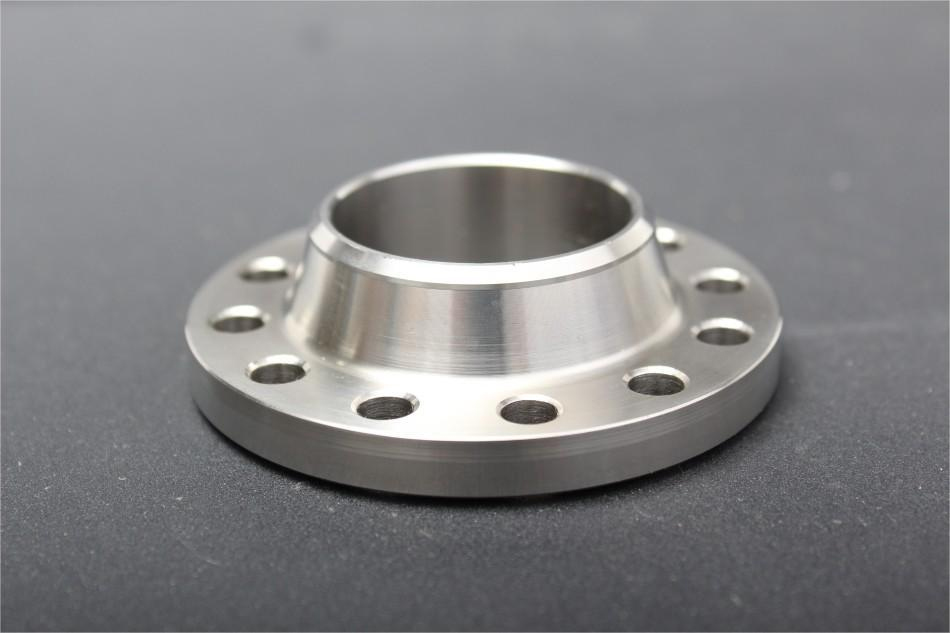

Weld Neck Flanges
Weld Neck Flanges feature a long tapered hub that is butt-welded to the pipe. This design transfers stress from the flange to the pipe, making them the best choice for high-pressure, high-temperature, and critical safety applications.

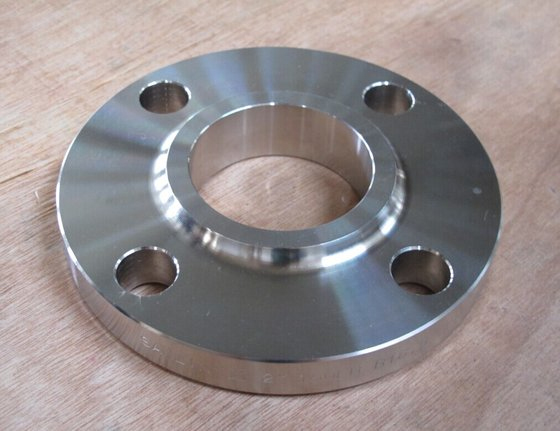

Slip-On Flanges
Slip-On Flanges slide over the pipe and are fillet welded both inside and outside. They are easier to align and more cost-effective than weld necks, making them popular for low-to-medium pressure applications.

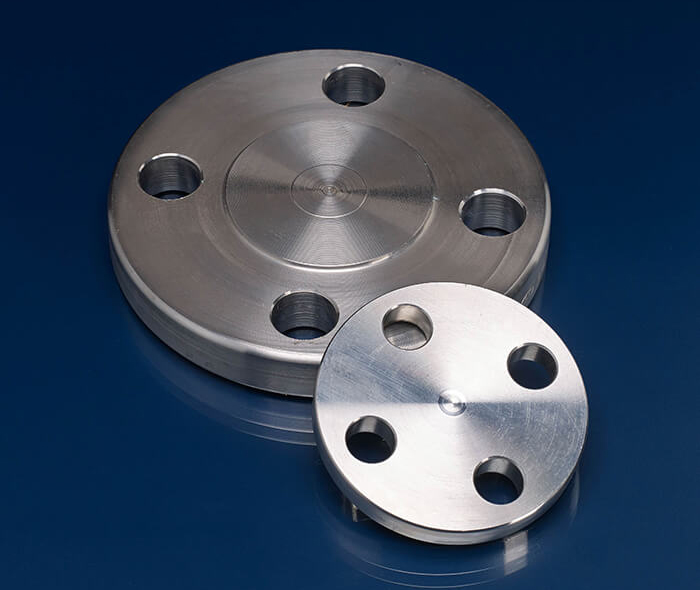

Blind Flanges
Blind Flanges are solid discs without a bore, used to seal the end of a piping system or vessel opening. They withstand the highest internal pressure and are essential for pressure testing lines and allowing future expansion.

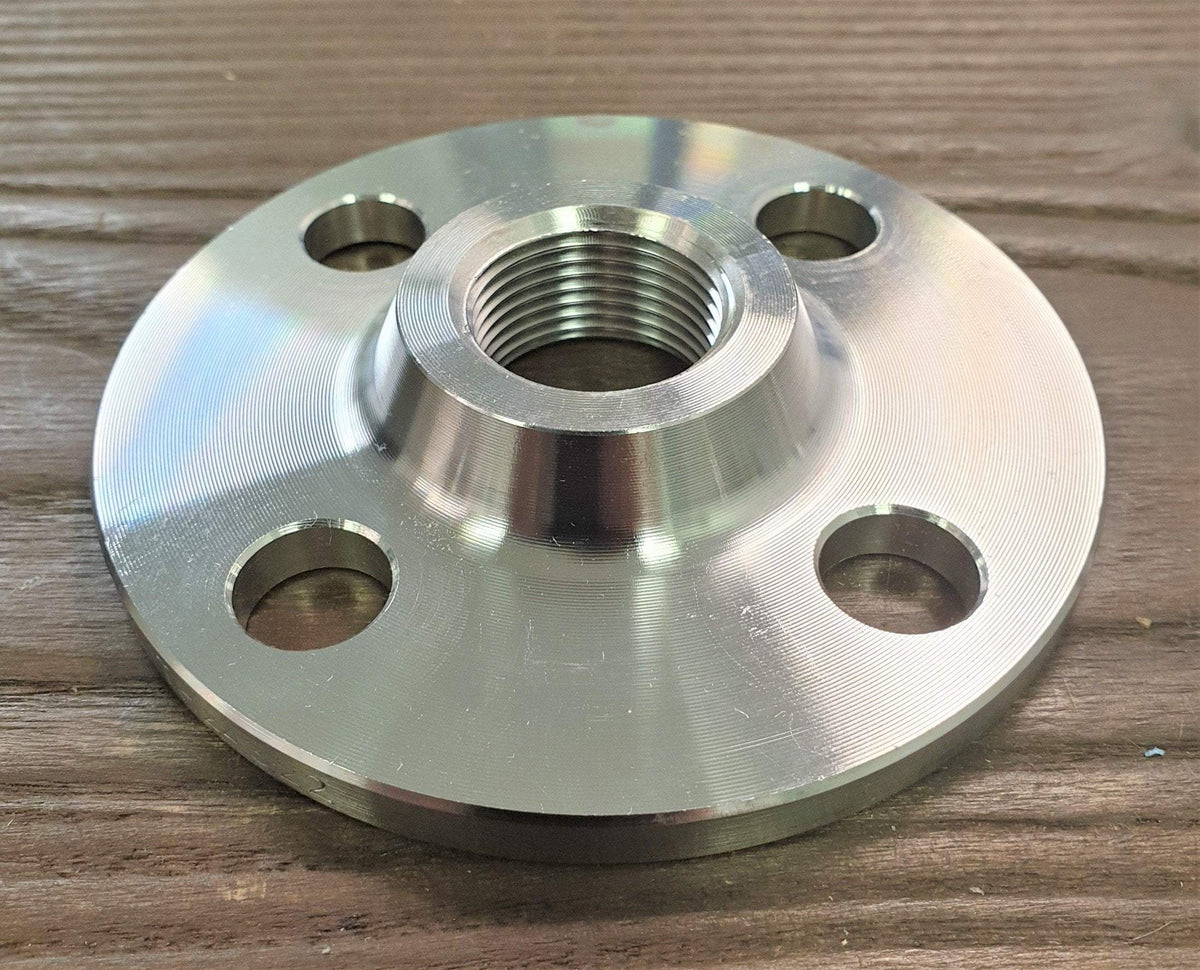

Socket Weld & Threaded
Socket Weld Flanges are used for small-bore high-pressure lines, welded only on the outside. Threaded Flanges are screwed onto the pipe without welding, ideal for hazardous areas where welding is not permitted.

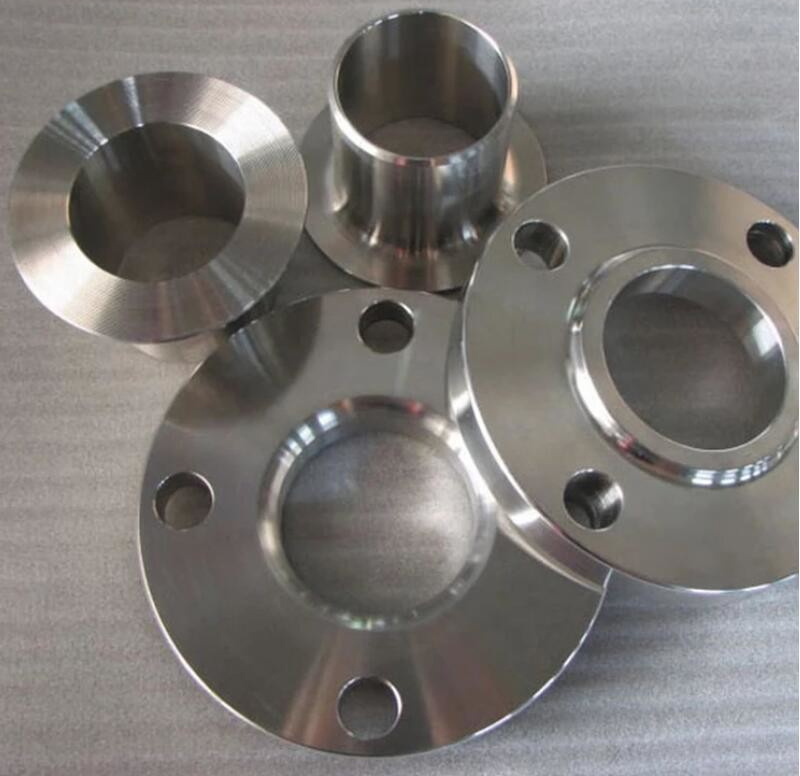

Lap Joint Flanges
Lap Joint Flanges are used with a Stub End. The flange slides over the pipe but is not welded to it; only the stub end is welded. This allows the flange to rotate for easy bolt hole alignment and permits the use of cheaper carbon steel flanges on stainless lines.
