Forged Fittings
Forged Fittings
Unicorn Metal Industries is a leading supplier of high-pressure Forged Fittings designed for critical piping systems where safety and reliability are paramount. Manufactured from solid steel forgings, these fittings offer superior strength and a dense grain structure, making them ideal for high-pressure and high-temperature applications.
We specialize in Stainless Steel Forged Fittings compliant with ASME B16.11 and MSS-SP-79/83/95/97. Our inventory includes grades like 304/L, 316/L, 321, and 310S, available in both Socket Weld (SW) and Threaded (SCRD) connections.
For oil, gas, and power generation, we supply robust Carbon Steel Forged Fittings (ASTM A105, A350 LF2). These fittings are engineered to withstand extreme pressure classes, ranging from 2000#, 3000#, 6000#, to 9000#.
Our portfolio also includes Alloy Steel and Nickel Alloy Forged Fittings (Inconel, Monel, Hastelloy) for corrosive and high-temperature environments. We stock a complete range of types including Elbows (45°/90°), Tees, Unions, Couplings, Plugs, Bushings, and Olets (Weldolet, Sockolet, Threadolet).
Specification Table of Forged Fittings
| Specification | Details |
|---|---|
| Product | High Pressure Forged Fittings |
| Types | Elbow (90°/45°), Tee (Equal/Reducing), Cross, Coupling (Full/Half), Union, Cap, Plug (Hex/Round/Square), Bushing, Swage Nipple, Insert |
| Branch Fittings (Olets) | Weldolet, Sockolet, Threadolet, Elbolet, Latrolet, Nipolet, Sweepolet |
| Standards | ASME B16.11 (Socket Weld & Threaded), MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799 |
| Pressure Rating (Socket Weld) | 3000 LBS, 6000 LBS, 9000 LBS |
| Pressure Rating (Threaded) | 2000 LBS, 3000 LBS, 6000 LBS |
| Material Grades (Stainless) | ASTM A182 F304/L, F316/L, F321, F347, F310, F904L |
| Material Grades (Carbon) | ASTM A105 / A105N, ASTM A350 LF2 (Low Temp), ASTM A694 F42-F70 |
| Material Grades (Alloy) | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Nickel Alloys | Monel 400, Inconel 600/625, Incoloy 800/825, Hastelloy C276 |
| Size Range | 1/8" NB to 4" NB (Forged Fittings) |
| End Connections | Socket Weld (SW), Threaded (NPT, BSP, BSPT) |
| Applications | High Pressure Steam, Instrumentation Lines, Chemical Injection, Hydraulic Systems, Oil & Gas Refining |

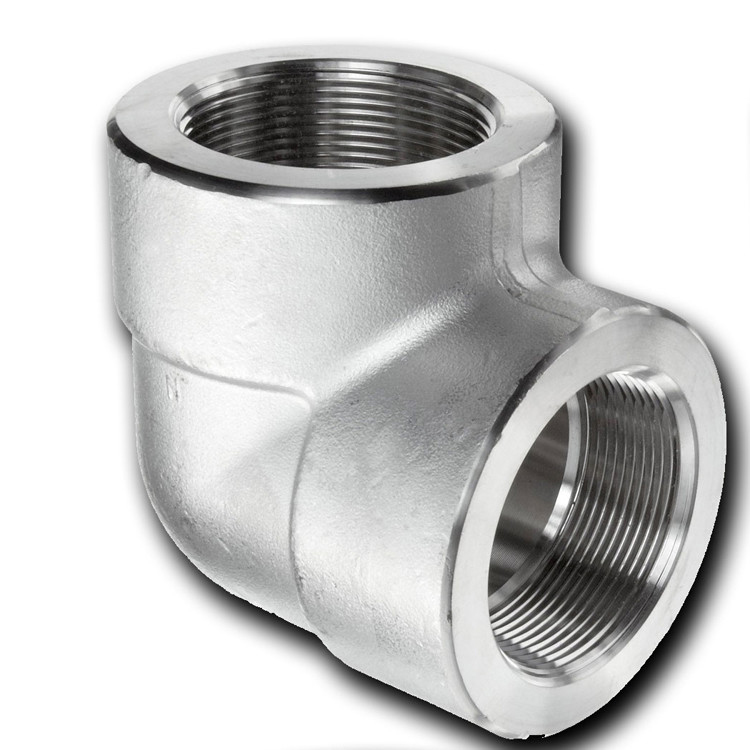

Forged Elbow
Forged Elbows are essential for changing the direction of flow in high-pressure piping systems. Available in 90° and 45° angles, they provide a robust, leak-proof turn in small-bore lines where butt-weld fittings are not practical.

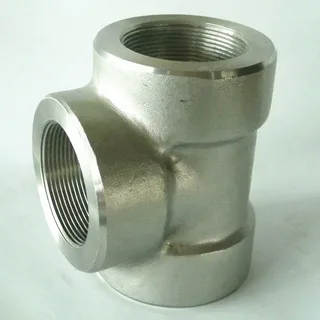

Forged Tee
Forged Tees are used to split or combine flow in a T-shaped junction. We supply both Equal Tees (all ports same size) and Reducing Tees (branch port smaller) to suit various hydraulic and pneumatic system designs.

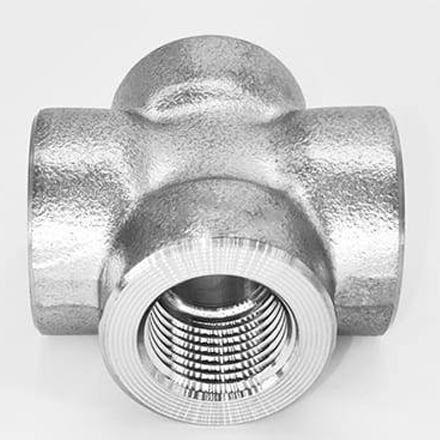

Forged Cross
Forged Crosses feature four openings arranged at 90 degrees, allowing for the connection of four pipes. They are typically used in fire sprinkler systems and complex chemical distribution networks requiring multi-directional flow.

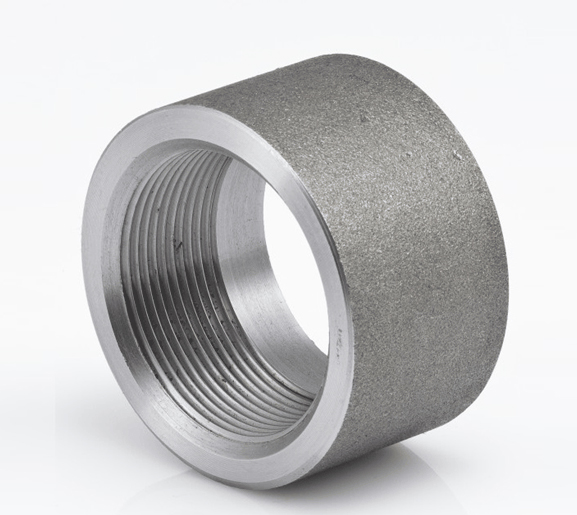

Forged Coupling
Forged Couplings are used to connect two lengths of pipe. Full Couplings join two pipes, while Half Couplings are welded directly to a larger run pipe or vessel to create a branch outlet connection.

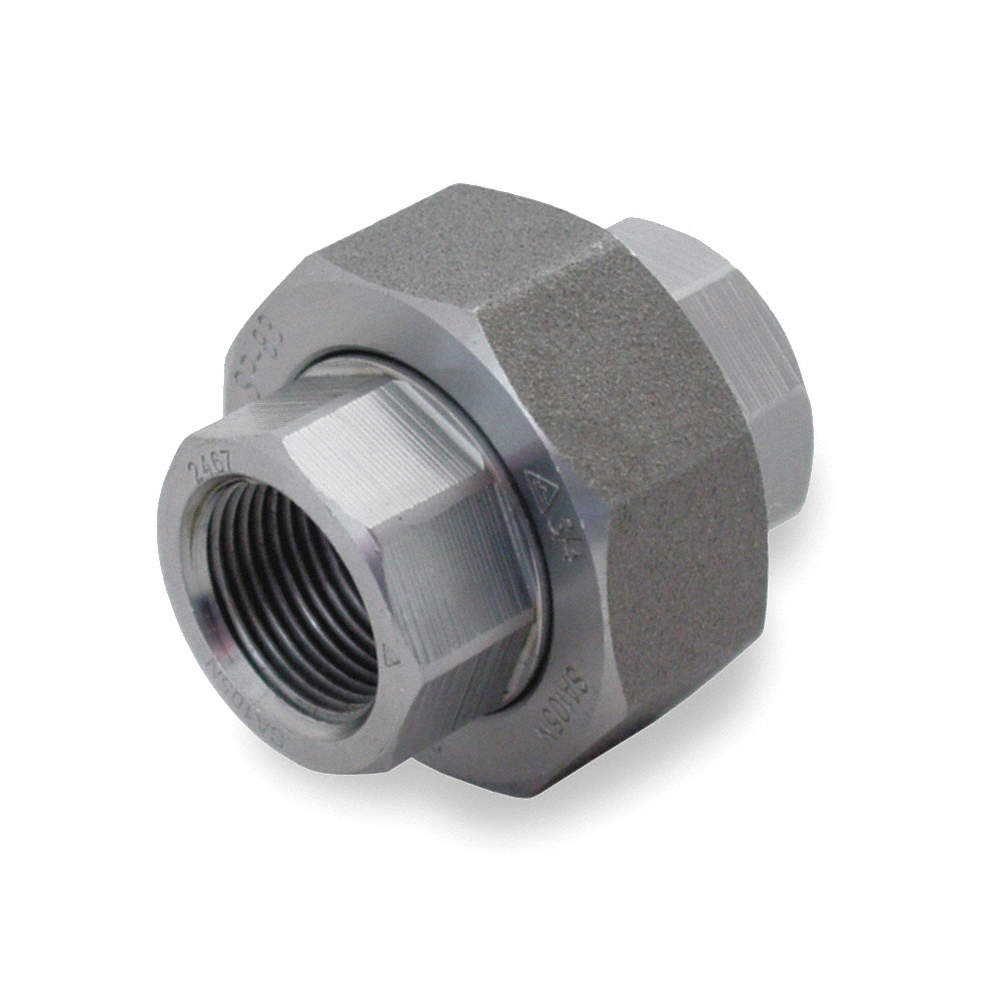

Forged Union
Forged Unions consist of three interconnected parts designed to join two pipes while allowing for easy disassembly. They are critical for maintenance-heavy sections of piping where equipment needs frequent removal or replacement.

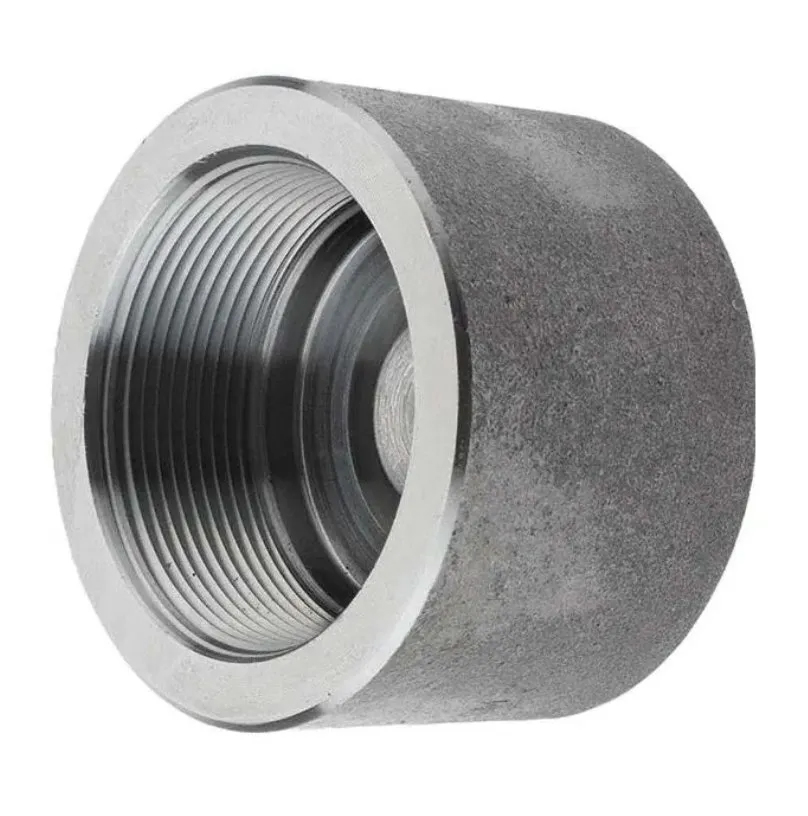

Forged Cap
Forged Caps are welded or screwed onto the end of a pipe to seal it completely. They act as a permanent protective device for pipe ends and are designed to withstand the full pressure rating of the piping system.

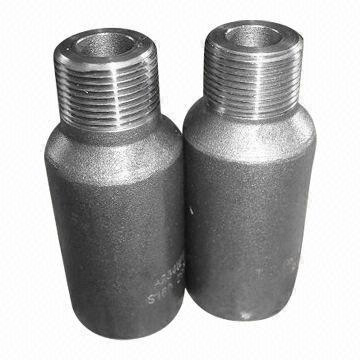

Swage Nipple
Swage Nipples act as reducers in forged piping systems, connecting two pipes of different diameters. Available in Concentric (center aligned) and Eccentric (offset) types to manage flow characteristics.

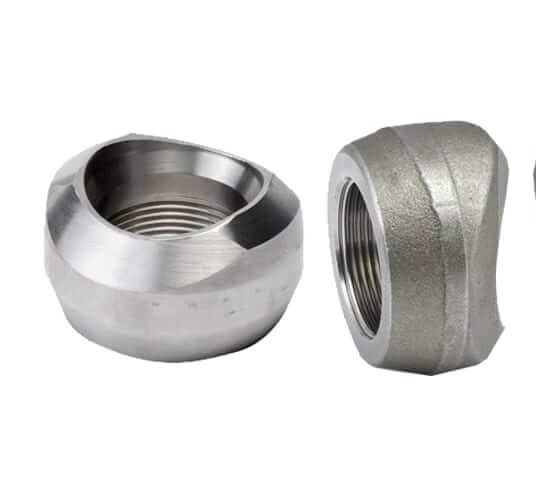

Olets (Branch Fittings)
Olets (Weldolet, Sockolet, Threadolet) provide the strongest method for branching a pipe. They reinforce the connection point on the run pipe, handling higher stress and pressure than a standard tee connection.

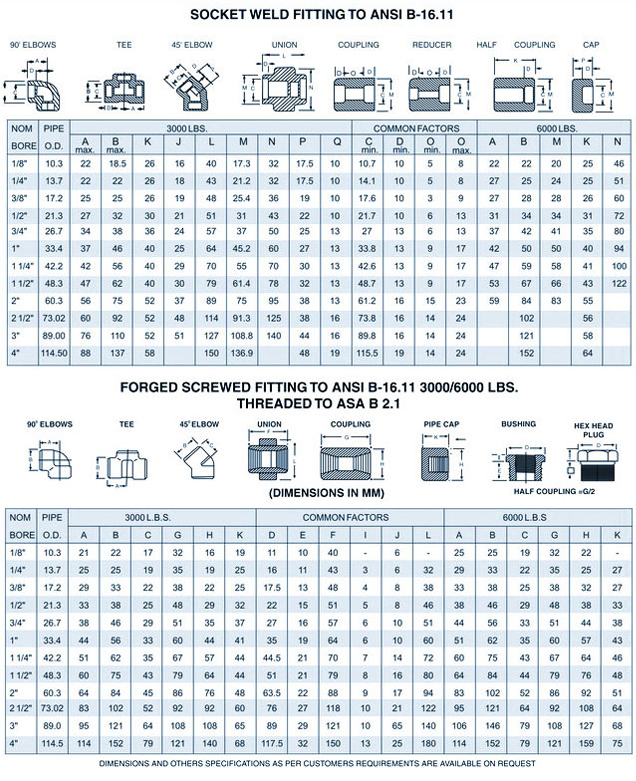

Standard Dimensions (ASME B16.11)
"Strength forged under pressure. Unicorn Metal Industries supplies the high-performance forged fittings that guarantee safety and integrity in the most critical, high-pressure piping systems."
